During a sport run, oil is accumulated in an oil catch tank with blow-by gas and the amount of oil in an engine is decreased accordingly.
This could possibly lead to serious troubles such as engine troubles due to the shortage of the amount of oil required. This problem soon becomes very apparent over time.
At Mine's, from the time of the sale of the R32 series, the time attack was repeated on the circuit and we fought with time & blow-by oil.
As a result of repeating trial and error we succeeded in decreasing the amount of spouting oil dramatically without depending on larger adjustments and reexamination of each part clearance of an engine (that leads to keep oils in an engine) , etc.
It was on Mine's R34 GT-R that details were refined even further.
By making slight adjustments to this product it has enabled us install it to normal cam cover.
Of course every type of R32s, R33s, and R34s can have this part installed.
The implementation was complete.

Within RB26 engine, the engine oil sent to the cylinder head will stagnate in the head without the ability of falling into the engine block immediately due to its structure. The oil moves by acceleration, deceleration, cornering, and will be exhausted with blow-by gas.

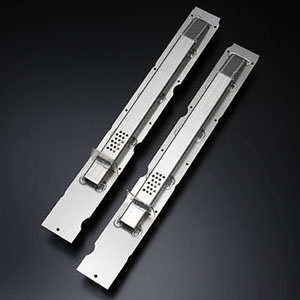

Mine's Triple Flow Cam Cover Baffle Plate always separates the gas from the oil by adopting three-layer structure that forms the gas / oil separator. This reduces the amount of oil loss by reducing flow velocity of the blow-by gas.

TRIPLE FLOW CAM COVER BAFFELE PLATE

Car Make

Stock Model

Engine

NISSAN

SKYLINE GT-R

BNR32

RB26DETT

BCNR33

BNR34
STAGEA 260RS

WGNC34kai
