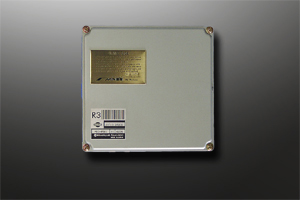

[ VX-ROM
Specifications for BCNR33
]
*Fuel control has been
optimized
*Ignition timing control has been
optimized
*Speed Limiter Control has been
changed
*Rev limiter has been
expanded
*Further reprogram can be made
depending on your
modification
|
|
|
|
for BCNR33 /
Autech Ver.
|
|
|
|
Price
:
|
TRADE-IN
|
|
JPY
|
|
96,000
|
|
|
|
|
|
|
|
|
|
|
|
|

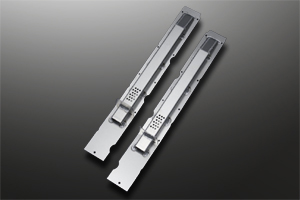

During a sport
run, oil is accumulated in an oil
catch tank with blow-by gas and
the amount of oil in an engine is
decreased accordingly.
This could possibly lead to
serious troubles such as engine
troubles due to the shortage of
the amount of oil required. This
problem soon becomes very
apparent over time. At Mine's,
from the time of the sale of the
R32 series, the time attack was
repeated on the circuit and we
fought with time & blow-by
oil.
As a result of repeating trial
and error we succeeded in
decreasing the amount of spouting
oil dramatically without
depending on larger adjustments
and reexamination of each part
clearance of an engine (that
leads to keep oils in an engine)
, etc.
It was on Mine's R34 GT-R that
details were refined even
further.
By making slight adjustments to
this product it has enabled us
install it to normal cam cover.
Of course every type of R32s,
R33s, and R34s can have this part
installed. The implementation was
complete.
|
|
|
|
for BNR32 /
BCNR33 / BNR34
|
|
|
|
|
|
|
|
|
|
|
|
|
|
We added
a new version to the
Silence VX muffler
titanium series.
It was renovated to meet
our customer's vehicle
specifications
widelyﾊ
while retaining the core
of exisiting Pro Titan
series.
The system meets the
stringent JASMA
regulations.
|
|
|
|
Material
: Titanium
Main Pipe: φ80
-φ89.1
Exhaust diameter:
φ120
Exhaust emission
measurement 91 dB
JASMA
|
|
|
|
for
BCNR33
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SKYLINE GT-R

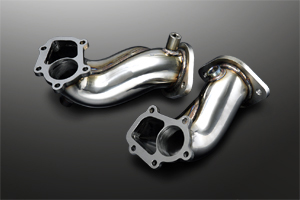

"Super Outlet Pro II" expands its
inner diameter up to φ65. It
is aimed to improve efficiency
and adjust with the tuned turbine
from normal to NISMO or HKS
GT25.
|
|
|
|
Material :
Stainless
Pipe Size : φ68
|
|
|
|
for BNR32 /
BCNR33 / BNR34
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

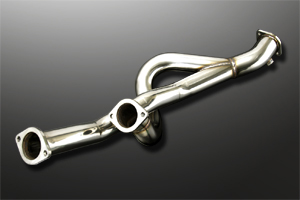

The Front Pipe
Pro was developed to combine with
the Super Outlet Pro. Its large
φ70 diameter and refined "R"
shape decreases the stress from
the exhaust flow.
|
|
|
|
Material :
Stainless
Pipe Size: φ70 x2-φ80
Even Length Type
Adapter for A/F sensor
attached
|
|
|
|
for BNR32 /
BCNR33 / BNR34
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

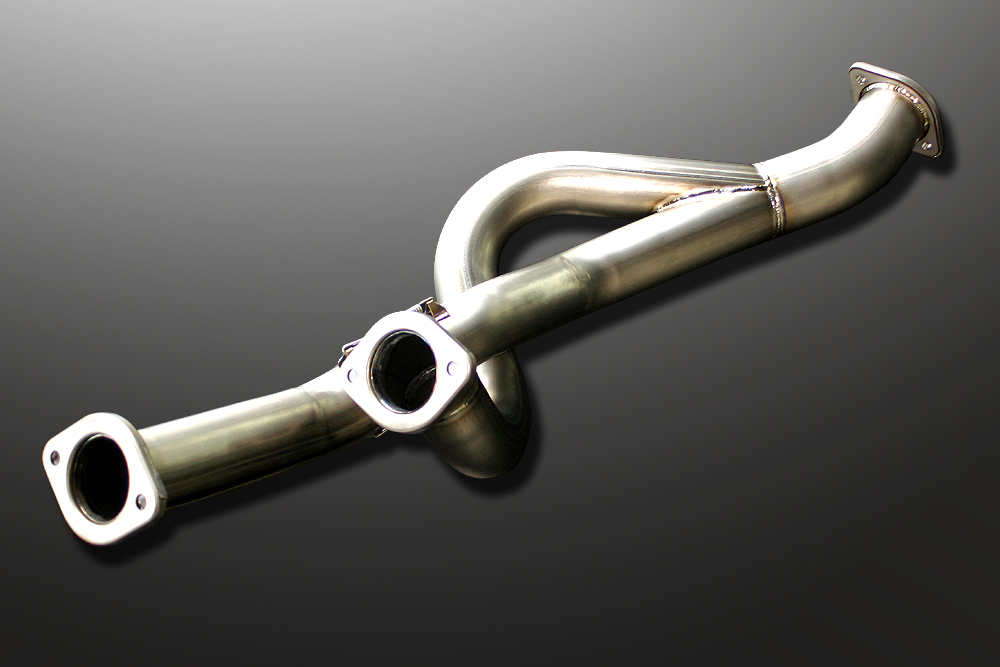

The Front Pipe
Titan (Titanium) is the pro spec.
version that is very light weight
and compared to the Front Pipe
Pro it has an enhanced
performance.
|
|
|
|
Material :
Titanium
Pipe Size: φ70 x2
-φ80
Even Length Type
Weight: approx. 3.2 kg / 7.1
pounds
|
|
|
|
for BNR32 /
BCNR33 / BNR34
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The tower bars
weight has been lightened by
changing the material from steel
to titanium, and with our
original design we have been able
to increase the vehicles
rigidness as well.
Mine's answer to overcome the
GT-R’s weight was to look at
each part, piece by piece and
find ways to lighten them.
This high quality product will be
a limited edition with only 30 to
be produced due to the highly
expensive material and the
intricate design.
|
|
|
|
Material :
Titanium
|
|
|
|
for BCNR33 /
BNR34
|
|
|
|
Retail : Limited
Edition of 30 ea
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

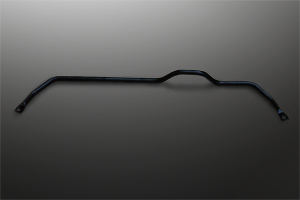

Stabilizer
exchange is the best for the
change of suspension feeling.
It is the same form as the stock
parts, and Mine's stabilizer with
the lightweight hollow type is
also an easy installation. It
achieves on improving the roll
stiffness and linear steering
feeling.
|
|
|
|
|
Pipe
Size
|
Thickness
|
|
BCNR33
(REAR)
|
SOFT
|
φ24.2
|
4.5
t
|
|
HARD
|
φ27.2
|
4.0
t
|
|
BNR34
(REAR)
|
φ27.2
|
4.0
t
|
|
|
|
|
for BCNR33 /
BNR34
|
|
|
|
|
|
|
|
|
